Cost effective industrial monitoring without compromising on quality

For developers who need a cost effective yet reliable industrial monitoring solution. From USD119.

COMPATIBILITY: Connect up multiple types of industrial device data to your designated server or cloud.
USER INTERFACE: Quickly set up monitoring solutions using Amplified's management interface.
EDGE COMPUTE: Dual core processor for handling scripts, containers & node red automations.
CELLULAR CONNECTIVITY: For remote or mobile asset monitoring.
WARRANTIES & AVAILABILITY: 5 year manufacturer warranty & 15 year availability.

nodemini edge gateway.png

Key Features

At a glance

Quickstart your Connectivity

Amplified Management Set Up Flow.png

Reliably set up flexible & secure data connectivity in a fraction of your time using the management suite.

Specifications	nodeMINI
Processing Core	CPU: NXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz
Operating System	Debian 11 OS supporting Docker
Custom Application Support	Python API library & support LUA API library & support Node Red support for automations
RAM	Standard Board: 2GB, LPDDR4
Storage	Standard Board: 32GB eMMC
Data Acquisition & Formats	Via Configurable Polling Cycle or REST API (HTTP GET) Data output format: JSON \| XML
Reporting Types	On Board SQL Queue (log & process before send) Real Time Reporting (no data buffer)
Quick Data Functions	Integrated mean value function Integrated average value function
Supported Industrial Protocols	Modbus TCP & RTU CAN Bus J1939, OBD2 (ISO-16765-4) & FD Serial RS485

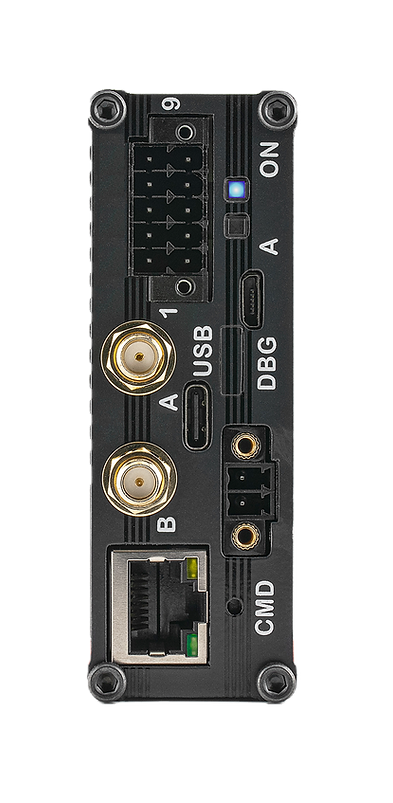

I/O & Ports	1 x Serial RS485 port 1 x CAN-FD port 1 x USB 2.0 host port, TYPE C connector Optional 3 x digital outputs + 3 x digital inputs
Integrated Cloud Clients	AWS (IoT Core, Sitewise) Azure (IoT Hub) Ubidots MQTT with TLS Security
Networking	1 x Gbit Ethernet, RJ45 Connector 4G/LTE CAT-4 cellular module, Telit LE910 802.11ax WiFi & Bluetooth 5.4 BLE (available as an option)
Asset Tracking	GPS (mutually exclusive with internal WiFi chip)
Mechanical Specifications	Dimensions:83mm (H) x 55mm (D) x 28mm (W) Weight: 170grams Housing type: Aluminium
Power Supply	12V - 24V DC (-20%/+20%), Reverse voltage protection
Operating Temperatures	Standard: 0 to 60 degree celsius Custom Option: -40 to 80 degree celsius
Mounting Types	Screw mounted - horizontal (with accessory) Screw mounted - vertical (with accessory) din rail mounted (with accessory)
Manufacturer Warranty & Availability	5 year warranty 15 year availability

Data Sheet & Manual

nodeG6 User Manual Download

Device Configuration

CAN Bus - J1939 iotasset Configuration

CAN Bus - ISO15765 iotasset Configuration

CAN Listen iotasset Configuration

Modbus iotasset Configuration

COMETH iotasset Configuration

Python Programming Guide

LUA Programming Guide

API Library

White papers & Tutorials.

Set Up Guides

Schneider Meter monitoring on AWS

Schneider Meter monitoring on AWS

Node Red Automations

Node Red Automations

Utilise the nodeG6 gateway like a mini-PLC with Node Red

nodeG6 overview graph.png

Terminal Plug Adapter_edited.jpg

PSU

Wall mount PSU with terminal plug adapter.
Input 100-240VAC 50/60Hz, 36W output 12VDC 3A.
Includes US, EU, UK, AU AC blades.

Cellular Antenna

Cellular rubber duck antenna with SMA connector.
Can be used on the gateway directly or with the antenna extender cable.

Antenna Extender

2m cellular antenna extender cable with magnetic mount.

WIFI and Bluetooth Antenna.png

WiFi/BTU Antenna

2.4GHz/5GHz rubber duck antenna with RP-SMA connector.

DIN rail clip

Mounting Bracket

(Horizontal)

Mounting Bracket

(Vertical)
